Durite R10 High Intensity 6 RED LED Warning Light (19 Flash Pattern)

Durite Red 6 x 0.5W LED ultra-high intensity LED warning light with 19 flash patterns.

• 12/24Vdc
• 19 programmable flash sequences
• CE, EMC R10 approved
• Protected to IP67

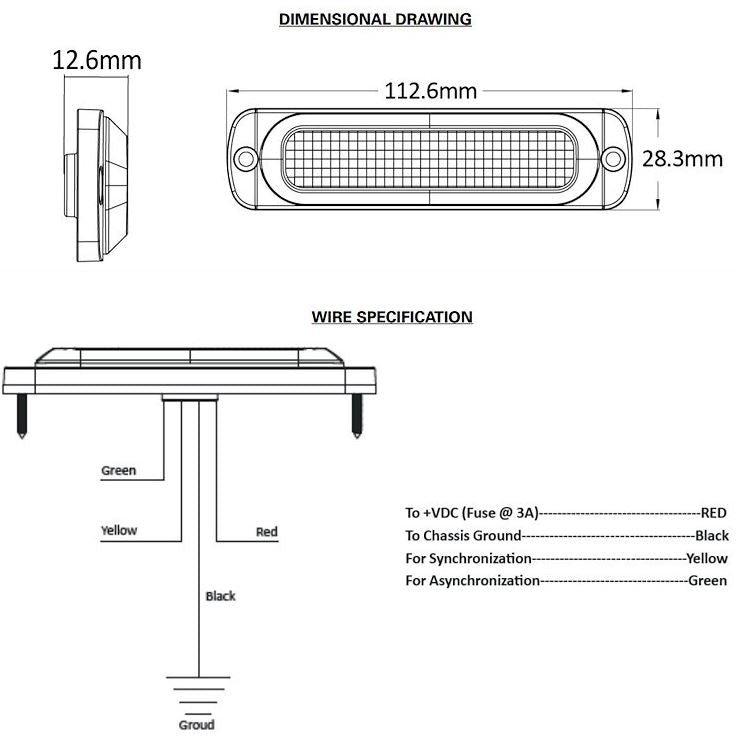

Dimensions

• Length: 112.6mm
• Width: 28.3mm
• Height: 12.6mm

19 Flash Patterns Total

Random, Single (split), Double (split), Quad (split), Quint (split), Mega (split), Ultra (split), Single-Quad (split), Single H/L (split), Single (all), Double (all), Quad (all), Quint (all), Mega (all), Ultra (all), Single-Quad (all), Single H/L (all), Steady 2 (California), Steady 4 (all).

Mounting

1. Place the unit against the mounting surface.
2. Mark the areas where the mounting holes are to be drilled. Confirm that no vehicle parts could be damaged by the drilling process.
3. Using a bit size for a no. 304 metal screw, drill two mounting holes, a 0.5” diameter. Wire passage hole(s) must also be drilled. Thoroughly de-burr all hole(s).
4. Pass the wires through the hole(s) in the gasket and through the wire passage hole(s) in the mounting surface. Fix the light head to the mounting surface.

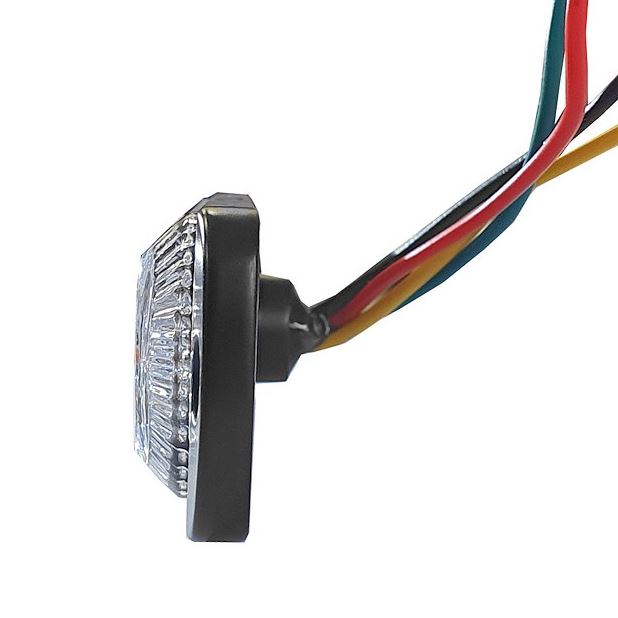

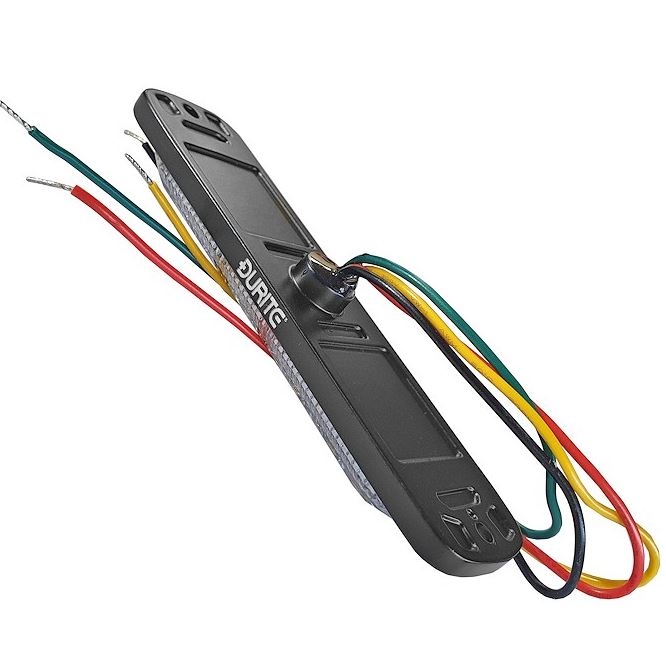

Wiring Colours

• RED: To +Vdc (Fuse @ 3A)
• BLACK: To Chassis - Ground.
• YELLOW: For Synchronization
• GREEN: For Asynchronization
