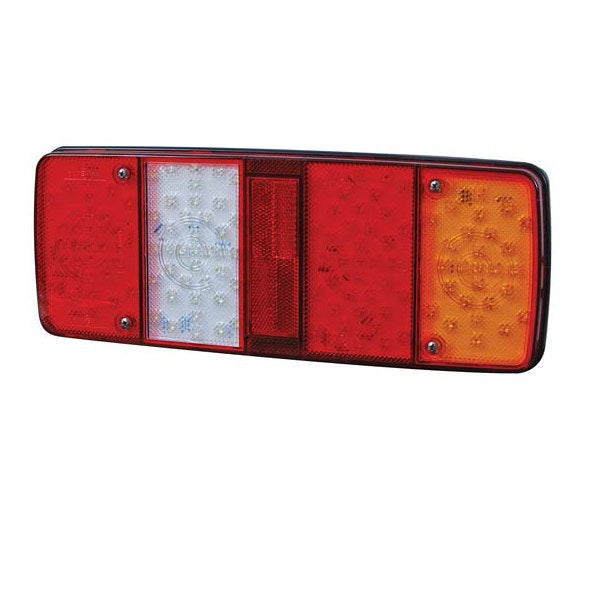

Commercial 24V LED Right Hand Combination Rear Lamp

 24V right hand version LED commercial combination rear lamp cluster.

• 24Vdc LED latest style rear combination light.
• Stop, tail, fog, direction indicator, reflex reflector and reverse.
• Pre-wired.
• ECE approved.

Dimensions

• Length: 341mm.
• Width: 61mm.
• Height: 132mm.

Associated Parts

• 0-086-50 left hand version LED lamp.
• 0-097-74 current loading ballast for 24V LED indicator lamps.

Wiring and Additional information

• Red cable: Stop
• White cable: -ve
• Yellow cable: Indicator
• Green cable: Fog
• Black cable: Reverse
• Brown cable: Tail, Number Plate
• 1m flying lead, cable outlet at rear.
