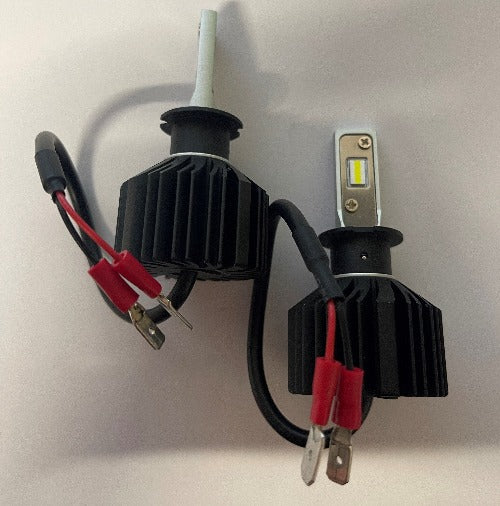

H3 ATOM LED Headlight Bulb Set 16W 6-32v
- Form effective lighting upgrade 200%
- Plug & Play, non-destructive & fast installation
- Perfect light beam pattern, no glare
- Practical and patented technology
- Same size luminous focus as standard halogen bulbs
- Standard light beam pattern type of anti-glare
- Canbus error free
- Voltage: 6-32v
- Power: 16W
- Temperature: -45 - +85c
- Lumen: 4800LM
- Color Temperature: 6500k
- Waterproof Level: IP68
360° BEAM ANGLE ADJUSTTABLE
There are some cars that need to adjust the beam angle for providing better lighting pattern, Unique adapter ring can provide 360° adjustable angle
LIGHTING BEAM ADJUST STEPS
Some cars need to adjust the beam angle for providing better lighting pattern. Please follow the below steps to adjust the rotating ring:-
If the stop of the existing halogen lamps is vertically up and down, it is no need to adjust. Otherwise, please follow the below steps to adjust the installation angle of rotating ring.
Use the allen key to loosen the screws of the rotating ring and then install the LED bulb.
Turn bulb body until the LED burner is aligned vertically in the reflector and shining to the left and right sides of the reflector. Check the angle on rotating ring from the front, take out the sews on rotating ring.
Install the LED bulb again for final check, the low beam should finally shine with the clear bright-dark cut-off line, This is meant to reduce glare lighting to other drivers.
